Control box for 2 motors 4500N
Article number: 10-014-961
Sign in for price and stock status

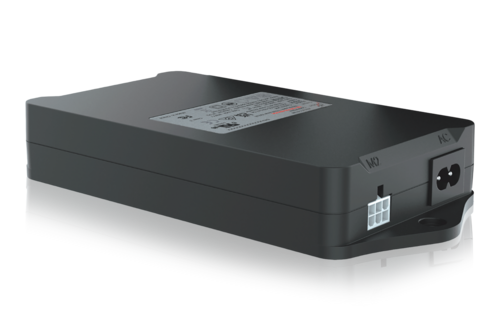

Product information - Control box for 2 motors 4500N
A compact and efficient control unit designed for one or two lifting columns. With its streamlined design and small installation dimensions (202×96×33 mm), it is ideal for applications where space is limited. The unit is equipped with an integrated back-drive brake function, high-precision anti-collision protection, and programmable software. Bluetooth connectivity is available as an option.
Specifications:
- Input voltage: 100–240 V, 50/60 Hz
- Input current: 2.5 A
- Output voltage: 32 V DC, 110 VA each / total 220 VA
- Max. output power: 350 W
- Power consumption: Standby: 0.3 W
- Temperature range: +5°C to +45°C
- IP rating: IP20
