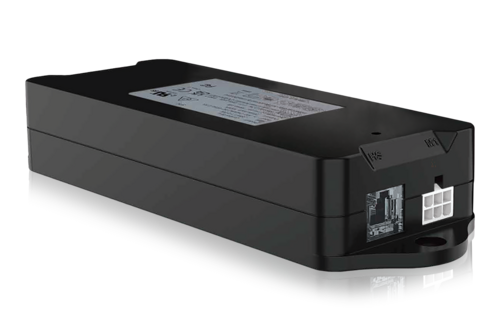

Control box for 1 motor 4500N
Article number: 10-014-960
Sign in for price and stock status
Product information - Control box for 1 motor 4500N
A compact and efficient control box designed for one lifting column. With its streamlined design and small installation dimensions (200x68x34 mm), it is ideal for applications where space is limited. The unit is equipped with an integrated back-drive brake function, high-precision anti-collision protection, and programmable software. Bluetooth connectivity is available as an option.
Specifications:
- Input voltage: 100–240 V, 50/60 Hz
- Input current: 2.5 A
- Output voltage: 24 V DC / 100 VA
- Max. output power: 150 W
- Power consumption: Standby: 0.3 W
- Temperature range: +5°C to +45°C
- IP rating: IP20
