Partition Wall 900 Superstructure

Product information - Partition Wall 900 Superstructure

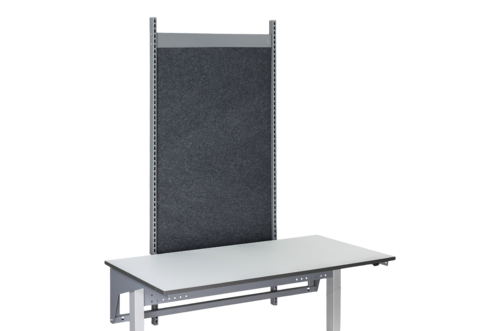

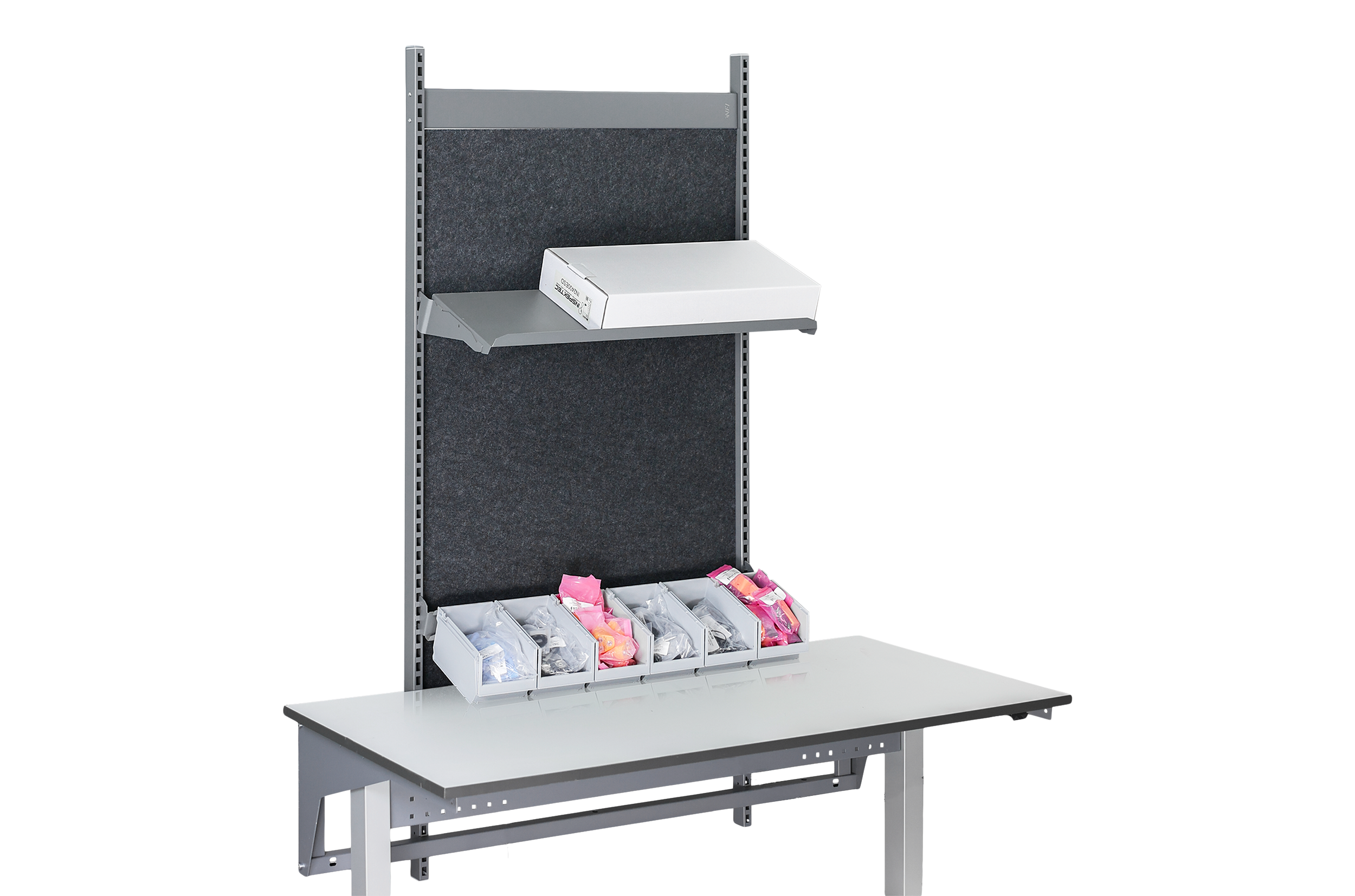

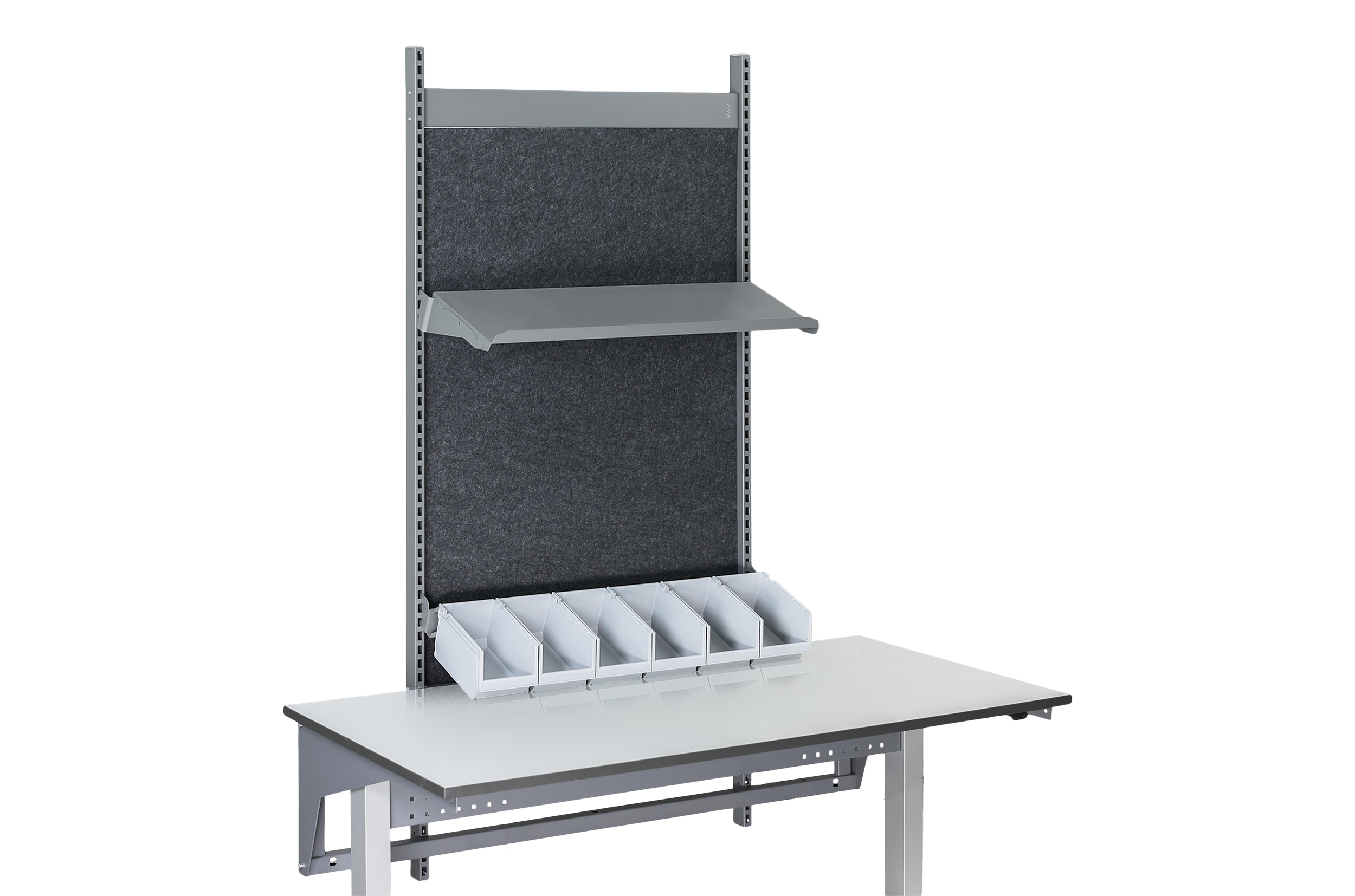

Sound-absorbing partition wall designed for superstructure above the workbench. A perfect complement to your workstation, providing effective noise reduction while creating clear separation between adjacent stations. The panel is easily mounted between the uprights of the superstructure using three pairs of hooks and wood screws secured into the back panel. As the sound-absorbing back panel is installed between the uprights, you can still seamlessly add other accessories such as shelves, panels, and storage rails – maintaining full flexibility in your workstation setup.

The sound absorbing material is polyester made from recycled material (50% PET). The surface layer is needle felt which provides a durable surface. Temperature range -30 to +80 °C. The material is combustible and tested according to EN 13501-1 which falls into Fire Classification B S1 D0. The smoke is not harmful, and it does not produce burning droplets.

The material is recyclable. Follow local guidelines for sorting metal and polyester.

Specification - Partition Wall 900 Superstructure

Article number: 615180-136
Width: 875 mm
Depth: 30 mm
Height: 1435 mm
Material: Polyester
Frame material: Steel
Color: Grey
Color code: NCS S 6502B

Media - Partition Wall 900 Superstructure

Assembly instructions
  615180 Assembly Instructions.pdf
